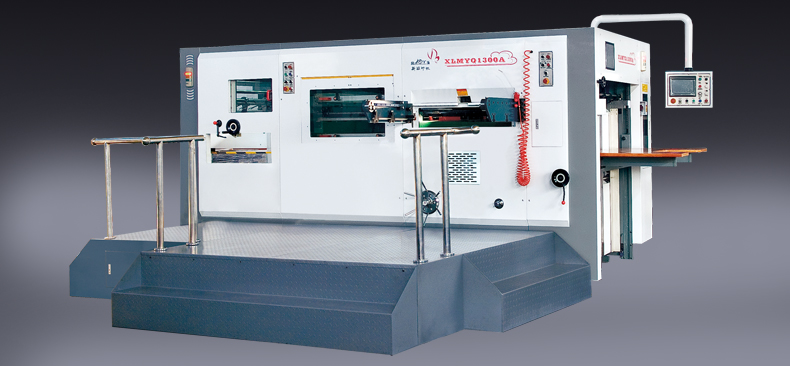

XLMYQ-1300A / 1500A SEMI-AUTOMATIC DIE-CUTTING&CREASING MACHINE WITH STRIPPING STATION

Main Features
XLMYQ-1300A/1500A The Semi-Automatic Diecutting&Creasing Machine with Stripping Station is special equipment applying to die-cutting of advanced colored boxes made of paper. The machine combines several advantages over many other die-cutters both in China and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper.Frontal ,back positioning and side registration mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanisim with high precision, air clutch with the fast movement, pneumatic locking mechanism, programmable controller and human-machine interface.The interface can display various digital information of machine such as working speed, amount of paper processed, total running time etc. It is easy to eliminate troubles according to the display of trouble shooting.Transducer is adopted to control the main motor in achieving stepless speed variation. The machine has a lot of sensors and safe-ensuring devices to guarantee the normal operation and the safety to operator. Frontal and back pressure of the die-cutting can be adjusted separately. It is convenient to stop the machine by hand. It can also realize die-cutting without clipper margin.
(This model can be equipped with Semi-Automatic Diecutting&Creasing Machine)

XLMYQ-1300A Main Specification
Model XLMYQ-1300A
Max.Paper Size 1300×980mm
Min.Paper Size 550×500mm
Max.Diecutting Size 1290×970mm
Cardboard 200-2000g/㎡
Corrugated Paper ≤8mm
Max.Working Speed 4600sheets/h
Max.Working Pressure 300T
Diecutting Precision ±0.5mm
Gripper Adjustabl Range 7-14mm
Max.Feeding Pile Height 1600mm
Max.Delivery Pile Height 1450mm
Total Power 18.5KW
Overall Dimensions 5250×4100×2305mm
Total Weight  16.5T
XLMY-1300A Main Specification
Model XLMY-1300A
Max.Paper Size 1300×980mm
Min.Paper Size 550×500mm
Max.Diecutting Size 1290×970mm
Cardboard 200-2000g/㎡
Corrugated Paper ≤8mm
Max.Working Speed 4600sheets/h
Max.Working Pressure 300T
Diecutting Precision ±0.5mm
Gripper Adjustabl Range 7-14mm
Max.Feeding Pile Height 1600mm
Max.Delivery Pile Height 1450mm
Total Power 15.5KW
Overall Dimensions 4070×4100×2400mm
Total Weight  14.5T
XLMY-1500A Main Specification
Model  XLMY-1500A
Max.Paper Size 1500×1100mm
Min.Paper Size 550×500mm
Max.Diecutting Size 1490×1090mm
Cardboard 200-2000g/㎡
Corrugated Paper ≤8mm
Max.Working Speed  4600sheets/h
Max.Working Pressure 300T
Diecutting Precision ±0.5mm
Gripper Adjustabl Range 7-14mm
Max.Feeding Pile Height 1500mm
Max.Delivery Pile Height 1420mm
Total Power 15.5KW
Overall Dimensions 4300×4250×2400mm
Total Weight  16.5T
