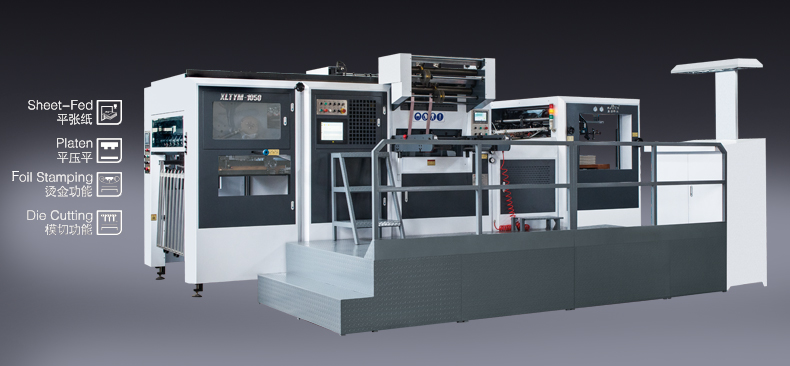

XLTYM-1050 / 1080 AUTOMATIC FOIL STAMPING&DIE-CUTTING MACHINE

Main Features
XLTYM-1050 /1080 Automatic Foil Stamping&Die-cutting Machine is equipped with the horizontal and vertical foil stamping device, the structure is reasonable, the operation is convenient, is widely used for the die-cutting,creasing, foil stamping,cold and hot embossing of cigarette box, drug box and label in the packaging and decoration industries. The machine adopt the high technology to realize the fully automatic feeding,diecutting, stamping,delivery, up-press, down-press,leap step,counting, heating, pre-heating, obstacle indicating,checking and measuring.With the feature of easy operation, reliability, high speed, pressure and precision.

1.Longitudinal and lateral foil stamping devices are equipped which make foil stamping process more reasonable.
2.The longitudinal foil-delivering unit can be pulled out when you install the foil ,convenient for operation.
3.Pneumatic plate-locking device is equipped which improves the level of automation.
4.Cooling device for lubrication oil is added which reduces the wear of parts when they are heated ,ensures the machine working pressure.
5.Cooling device for electrical box is added which improves the life of electrical parts.
Main Specification

Model XLTYM-1050
Max.Paper Size 1050×750mm
Min.Paper Size 450×400mm
Max.Die-cutting Size 1040×740mm
Max.Foil Stamping Size 1020×710mm
Max.Die-cutting Speed 7000s/h
Max.Stamping Speed 5500s/h
Max.Pressure 300T
Stamping Setting temperature 0-199℃
Max.Foil Diameter φ100mm/1″ φ195mm/3″
Max.longitudinal foil length 710mm
Max.lateral foil length 1020mm
Heating quantity 12
Longitudinal foil shaft 2QTY
Lateral foil shaft 2QTY
Min.foil lengh 0.01mm
Sheet Thickness 瓦楞纸≤4mm 纸板0.1-1.5mm
Heating plate power 24KW
Main motor power 15KW
Total power 56KW
Total weight 18T
Overall Dimensions 5850×4250×2350mm
XLTYM-1080
Model XLTYM-1080
Max.Paper Size 1080×780mm
Min.Paper Size 400×370mm
Max.Die-cutting Size 1070×770mm
Max.Foil Stamping Size 1020×710mm
Max.Die-cutting Speed 7000s/h
Max.Stamping Speed 5500s/h
Max.Pressure 300T
Stamping Setting temperature 0-199℃
Max.Foil Diameter φ100mm/1″ φ195mm/3″
Max.longitudinal foil length 710mm
Max.lateral foil length 1020mm
Heating quantity 12
Longitudinal foil shaft 2QTY
Lateral foil shaft 2QTY
Min.foil lengh 0.01mm
Sheet Thickness 瓦楞纸≤4mm 纸板0.1-1.5mm
Heating plate power 24KW
Main motor power 15KW
Total power 56KW
Total weight 18T
Overall Dimensions 6000×4000×2300mm
