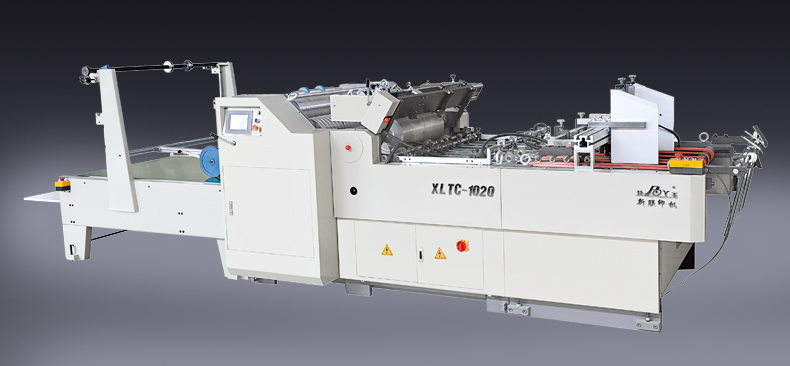

XLTC-1020 / 1200 / 1450 WINDOW PATCHING MACHINE

Main Features
XLTC-1020/1200/1450 Window Patching Machine is widely used in the film patching to be package with or without the window of the phone box、 wine box、 napkin box、 cosmetic box、toy box 、milk case、 card etc. It can be used for the function of the paper gluing, film patching, film cutting of card 200-500g/㎡ and flute within 3mm thick.

This machine has the following functions by configuring different
Film Servo Model: Suitable for the universal window ,easy operation for the film.
Intermittent Length Slitting: Suitable patching for the universal window, and also patching for the napkin box incision.
Paper Patching Perforated Model: Suitable patching for the universal window, and also finish the paper pasting strengthen and perforating of the milk case.
Double Patching Model: Patching for the universal window, double patching for the kraft paper of the milk case and then diecutting. (The max. paper size is 1080×730mm )
Double Line Model: Suitable for the universal patching ,and also double line paper patching to improve the working efficiency.
Small Paper High Speed Model: Suitable for the high speed paper patching for the small paper ,the speed improve two times than the common model.(12000s/h)
Small Paper for Double Line High Speed Model: Suitable for the double patching for the small paper ,double patching ,the speed improve four times than the common model .




XLTC-1020 Main Specification



Model XLTC-1020
Max. Paper Size

1080×630mm

Min. Paper Size 140×140mm
Max. Film Size

410×300mm

Min. Film Size 80×60mm
Film Thickness 0.05-0.20mm
Max. working speed 8000s/h
Carboard 200-500g/㎡
Corrugated Paper ≤7mm
Total Power 9Kw
Total Weight 3000kg
Overall Dimensions 5000×1960×1750mm
(When the roller pull out the dimensions) 5000×3160×1750mm
XLTC-1200 Main Specification
Model XLTC-1200
Max. Paper Size 1200×720mm
Min. Paper Size 140×140mm
Max. Film Size 410×300mm
Min. Film Size 80×60mm
Film Thickness 0.05-0.20mm
Max. working speed 6000s/h
Carboard 200-500g/㎡
Corrugated Paper ≤7mm
Total Power 10Kw
Total Weight 3500kg
Overall Dimensions 6200×2000×1750mm
(When the roller pull out the dimensions) 6200×3260×1750mm
XLTC-1450 Main Specification
Model XLTC-1450
Max. Paper Size 1400×900mm
Min. Paper Size 140×140mm
Max. Film Size 410×300mm
Min. Film Size 100×100mm
Film Thickness 0.10-0.25mm
Max. working speed 5000s/h
Carboard 400-500g/㎡
Corrugated Paper ≤7mm
Total Power 14Kw
Total Weight 4500kg
Overall Dimensions 7500×2200×1750mm
(When the roller pull out the dimensions) 7500×3400×1750mm
